| Certification: | calibration certificate |
| Model Number: | FGW |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiate |
| Packaging Details: | Standard wooden case |
| Delivery Time: | stock |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 piece |
| Product: | Glow Wire Apparatus，flammability Test Chamber | Standard: | IEC 6060950 |
|---|---|---|---|
| Material: | Stainless Steel Or Coated Plates | Certificate: | Calibration Certificate |
| Deformation Temperature Point: | 960 Degree | Application: | Plastic,rubber,foam Etc Material |
| Warranty: | One Year | Power: | 220V Or 110V |
| Color: | White & Black |

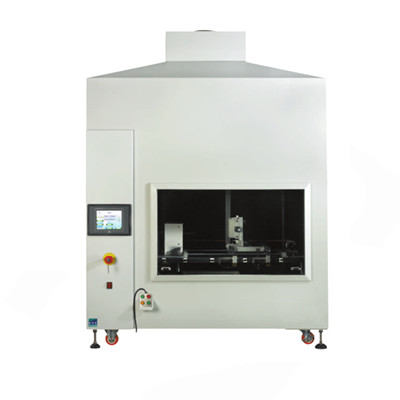

Glow Wire Test Apparatus is designed to test the resistance to fire of insulating
parts. It assesses the susceptibility of electrical insulating materials to ignition as a result
of exposure to a glowing wire.This test method determines the minimum temperature
required to ignite a material by the effect of a glowing heat source, under the specified
conditions of test.
Specification:
Heating element: Nickel/Chromium glow-wire (80:20),4 mm dia,
shaped as specified in standards
Temperature sensor: Sheathed Cr/Al thermocouple,0.5 or 1.0 mm dia,
located in tight fitting pocket hole in glow-wire
Temperature range: Ambient to 999.9°C adjustable
Temperature precision: ± 5°C
Max.output power: 1000W
Glow wire application time: 0.1- 999.9 sec
Sample loading Test sample moves against glow-wire preloaded
to 1.0 ± 0.2N
Sample carriage: Automatic,motorised movement of test specimen
Power source: 220VAC 50/60Hz
Safety: Emergency stop,PLC interlocks
