| Certification: | CE ROHS ILAC CNAS ISO |
| Model Number: | PH-IK10 |
| Minimum Order Quantity: | One Piece |
|---|---|
| Price: | 200-900USD |
| Packaging Details: | carton case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 200PIECE |

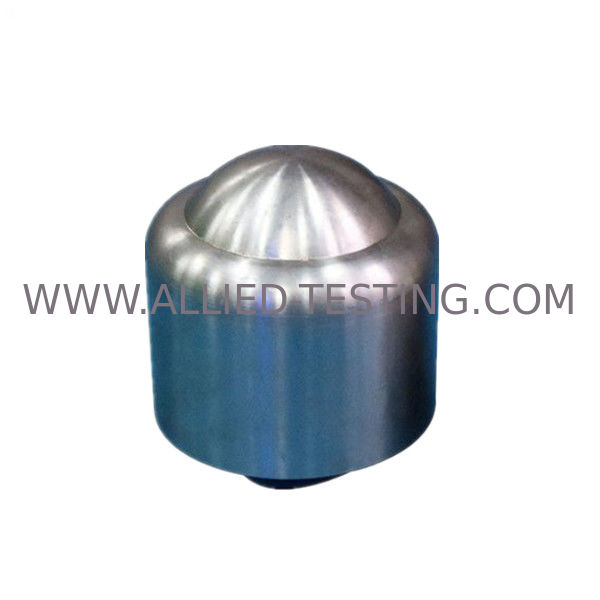

| Name: | IK10 – 5Kg Strike Element | Material: | Steel |
|---|---|---|---|
| Warranty: | One Year Warranty Period | Standard: | IEC EN62262 IEC60068-2-75 |
| Service: | OEM Accept | Hammer: | Accept Independently Sale |
IK10 impact hammer, pendulum impact test device,impact tester
To verify IK10 resistance, one impact of 5kg mass dropped from 400mm above the affected surface is necessary.
“The Standard EN 62262 provides a maximum resistance of IK10 = 20 joules with the possibility of extending the test to 50 joules. Please verify our other Strikes Elements with different mass and launching tubes.”
| Ik Code No. | Energy J |
| IK01 | 0.14J |
| IK02 | 0.20J |
| IK03 | 0.35J |
| IK04 | 0.50J |
| IK05 | 0.70J |
| IK06 | 1.0J |
| IK07 | 2.0J |
| IK08 | 5.0J |
| IK09 | 10J |
| IK10 | 20J |
